Lightweight cement alternative wall panel help saving labor costs

FOB Reference Price:Get Latest Price
$10.15 - $14.85 / Square Meter | 100 Square Meter/Square Meters (Min. Order)
Type:
EPS Sandwich Panels
Lead Time:
Quantity(Square Meters) 1 - 2000 >2000
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 5000 Square Meters)
Customized packaging (Min. Order: 5000 Square Meters)

More

Graphic customization (Min. Order: 5000 Square Meters) Less
Samples:
$1.00 /Square Meter | 1 Square Meter (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
ZJT
Model Number:
ZJTFP
Panel Material:
Nonmetal
Facing panel:
fiber cement board/Calcium Silicate board
Core Material:
Cement,EPS and Sand,Fly ash
Certificate:
CE,ISO,SGS
Specification:
various and customized
Light weight:
1 person can take up two pieces
Application:
wall/roof/floor
Installation speed:
15sqm/person/day
Fireproof Limit:
>3Hours
Anti-pressure:
>3.5Mpa
Service:
best after-sale service
Supply Ability
Supply Ability:
200000 Square Meter/Square Meters per Month foam cement insulation board
Packaging & Delivery
Packaging Details
1.Free packing (with normal pallet and packing belt) 2.Standard exporting packing (wrapped with plastic thin film,edge protect and good pallet): USD20-30/Package 3.Packing size: 1500-3000*610*1000mm 4.Loading: 18 pallets per 20' container, 11000kgs-18000kgs per 20' container
Port
Xiamen
Lead Time :
Quantity(Square Meters) 1 - 2000 >2000
Est. Time(days) 10 To be negotiated
Video Description
Product Description

ZJT EPS (Expanded polystyrene board) wall Panel is composed of exterior panels and interior core filling, to form a non-load-bearing light-weight composite wall panel. The exterior panels on both sides are 5mm calcium silicate board, and the middle core is filled with polystyrene beads & cement or ceramsite, polystyrene beads


,Tongue and groove profiles to interlock each panel. Can be manufactured with conduits.

Length
2270mm or 2440mm
Wdith
610mm
Thickness
60/75/90/100/120/150/180/200mm
Feature
Tongue and groove profiles to interlock

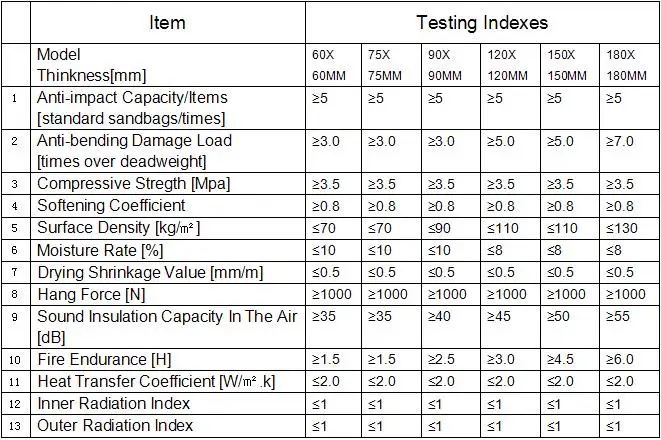

Specification
Feature

1.Easy Mobilization&Monitoring

Made in modular panel, ZJT panel can be stacked easily and can be transported in large quantity at the same time. This will ease the mobillization process as well as stock monitoring on the site

2.Soundproof&heatproof

EPS is one of components that made cement wall could muffle heat and sound

3.Wider&Broad space

Compared with other materials,the installation of ZJT panel in the building will affect the used area that eventually lend to a wider and broader space.

4.Environmentally friendly

5.Cement wall is made of 100% non-hazardous and non-radioactive materials that environmentally friendly and safe to be used for any wall at home.

6.Cleaner working site area

Cement wall doesn't need sand to support the installation process, hence resulted in cleaner working site area.

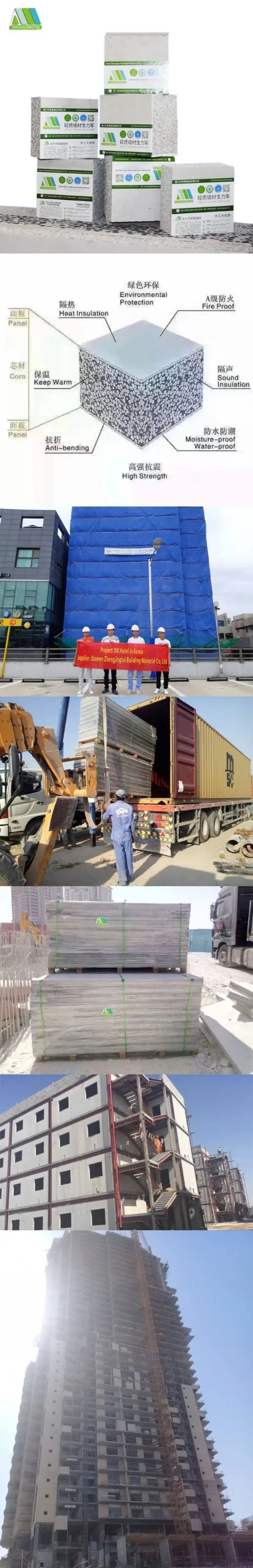

ZJT panel project

EPS Cement Sandwich Panels Applications

Non-load bearing interior & exterior wall panels, partition wall panels, floor panels, roof panels.
Bathrooms, kitchens, garages, basements, prefabricated houses, family homes, dormitories, residences, apartments, luxurious villas, factory warehouses, production workshops, auxiliary plants, hotels, bars, shopping malls, restaurants, schools, hospitals, airports, etc.


Reference Porjects

All the raw materials of our concrete wall panel are green and inorganic materials, that is the reason why ZJT wall panels also called GREEN PANEL and that is what make our concrete wall panel can be used in different kinds of construction:

High buildings

Government housing project

Prefab house & Villa

Residential construction

Single house

The fence of factory

Also can paste on tiles and cement mortar

Commercial buildings: shopping mall, hotel, office building



Contact

Zoe Zeng


Tex: +86-592-5216902 Fax: +86-592-5216317

Mobile/Whatsapp/Wechat: +8618559217326

Skype: cqannyzeng

Website: Http://www.sandwich-wall-panel.com
