Acoustic EPS sandwich panel for prefab house wall and roof

FOB Reference Price:Get Latest Price
$6.00 - $18.00 / Square Meter | 300 Square Meter/Square Meters (Min. Order)
Type:
Polyurethane Sandwich Panels
Lead Time:
Quantity(Square Meters) 1 - 1000 1001 - 10000 >10000
Est. Time(days) 10 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
ZJT
Model Number:
ZJT-SP001
Panel Material:
Metal
Warranty:
Lifetime
After-sale Service:
Online Technical Support
Project Solution Capability:
total solution for projects
material:
color stell+EPS+caccessoires
Core:
eps, steel
Feature:
easy operation& low cost& cheap
Usage:
exterior/interior wall,floor, roof,. prefab buildings. etc.
Advantages:
waterproof,fireproof,sound insulation,heat insulation etc.
Length:
6000mm/2800mm/OEM
Core Thickness:
50/75/100/120/150/200mm
Dnesity:
12-20KG/m3
Life Period:
15~20 years
Package:
PVC foil
Supply Ability
Supply Ability:
200000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
1.Free packing (with normal pallet and packing belt) 2.Standard exporting packing (wrapped with plastic thin film,edge protect and good pallet): USD20-30/Package 3.Packing size: 1500-3000*610*1000mm Loading: 18 pallets per 20' container, 11000kgs-18000kgs per 20' container
Port
xiamen
Picture Example:
package-img
Lead Time :
Quantity(Square Meters) 1 - 1000 1001 - 10000 >10000
Est. Time(days) 10 30 To be negotiated





Acoustic EPS sandwich panel for prefab house wall and roof





Sandwich panel is a structure made of three layers: low density core inserted in between two relatively thin skin layers. This sandwich setup allows to achieve excellent mechanical performance at minimal weight. The very high rigidity of a sandwich panel is achieved thanks to interaction of its components under flexural load applied to the panel: core takes the shear loads and creates a distance between the skins which take the in-plane stresses, one skin in tension, the other in compression. General information on sandwich panel structure, different sandwich core types available and the potential with respect to weight savings is available in the following reference.





Feature





1. Easy and quick to install;

2. Excellent load and span capabilities;

3. Significant savings in site installation costs;

4. Panel comes in a range of aesthetically pleasuring colors;

5.  Energy saving thermal insulation;

6.  Superior air tightness for controlled environments;

7. Good reactions to fire properties;

8. Durable, long lasting, stood the test of time in the extremes of harsh climate.





Specification:





Width:Wall panel: 950mm 1150mm 1200mm;      Roof panel: 950mm 980mm
Length:According to customer' s request
Material:Polystyrene foam board(EPS), Color steel sheet
Structure:Upper and lower layer: Color steel sheet
Core material: polystyrene foam board or polyurethane foam board
Treatment:  Pressing
Thickness:Color steel sheet: 0.3-0.8mm
Polystyrene foam board: 50mm 75mm 100mm 150mm 200mm
Density:8-20kg/m3 Polystyrene
Life Period:15-20 years
Package:PVC foil
Usage:various roofs and walls referring to the large size industry factory, storages, exhibition halls, gymnasiums, outdoor shelter etc.





Sandwich panel is currently a common building material products, has two layers of metal panels and middle polymer insulated core repression.

Forming an outer steel full account of the structure and strength requirements, taking into account the appearance, the inner surface layer is formed into a flat to suit a variety of needs. Filling system used is closed cell molecular structure, can prevent moisture condensation.

Two layers of metal sheets, middle polymer insulated core repression like EPS, rock wool, glass wool.













Application

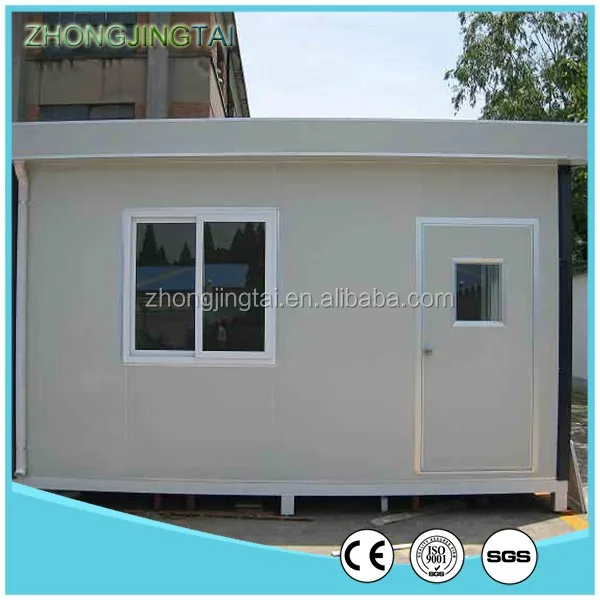

Widely used in steel structure workshop, simple movable house roof, wall, air clean ceiling and partition, prefab house, commercial and residential buildings, etc.




 1 (2).jpg2 (2).jpg



Packaging & Shipping








Company Information



Our Company——ZJT



xiamen ZhongJingtai building materials Co., Ltd, a comprehensive enterprise, specializes in developing and producing the new energy-saving wall materials. Located in the beautiful city, Xiamen, ZJT has modern working environment and production base. The factory is located in Quanzhou and its annual production capacity is more than two hundred million square meters.



The energy-saving sandwich wall panels are our main product, which has many advantages compared with traditional wall panels, including lightweight, solid core, thin body, high strength, shock resistance, heat insulation, sound insulation, fireproofing, waterproofing and easy installation. This not only conforms to modern construction requirement but also meets the country environmental-friendly building policy.



We adhere to the "quality first, win-win cooperation" business philosophy. We can design the sandwich wall panels according to your special request. Welcome to visit our factory and become our clients some day!



 .jpg





 If you have any more questions, please don't hesitate to let us know. We will send you more details. Thank you!



Steel EPS  panel

Steel EPS panel

steel EPS  panel
